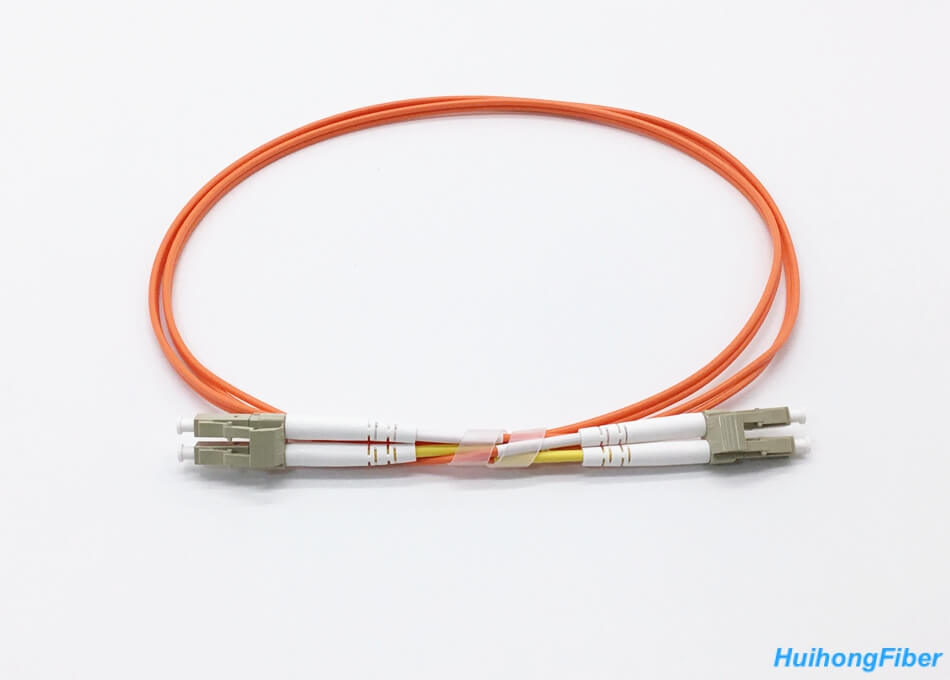

High-quality, low-cost 62.5/125 m OM1 multi-mode fiber optic cable.

The 62.5/125 m OM1 multimode fiber optic cable is suitable for fast Ethernet, Gigabit Ethernet, and Fibre Channel applications such as data centers, telecommunications rooms, farm farms, cloud storage networks, and anywhere you need fiber jumpers.

This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000Base-SX transceivers for fast Ethernet, Gigabit Ethernet, and Fibre Channel applications.

Specifications

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM1 62.5/125μm
Wavelength 850/1300nm 1G Ethernet Distance 280m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥20dB
Fiber Grade G.651 Minimum Bend Radius 15mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~80°C

Multimode Fiber with Graded Refractive Index of 125 um. Because the core diameter and numerical aperture of 62.5/125 um optical fiber are large, it has strong light collecting ability and bending resistance. Especially before the mid-1990s, the speed of local area network is low, and the bandwidth requirement of optical fiber is not high. Therefore, this kind of optical fiber has been widely used, and has become the mid-1980s to the 1990s. In the mid-decade, the main products in the data communication optical fiber market in most countries. 62.5/125-micron gradient index multimode fiber is the first multimode fiber adopted by the United States as a multi-industry standard, such as at&t indoor wiring system standard; ETA local area network standard; ANSI 100_mb/s token network standard; IBM token ring standard and so on. Usually, the bandwidth of 62.5/125 um gradient index multimode fiber is 200-400 mhz.km. At the rate of 1 gb/s, 850 nm wavelength can transmit 300 m and 1 300 nm wavelength can transmit 550m. Full injection power (OFL) bandwidth is 200/[email protected]/1300_nm.
