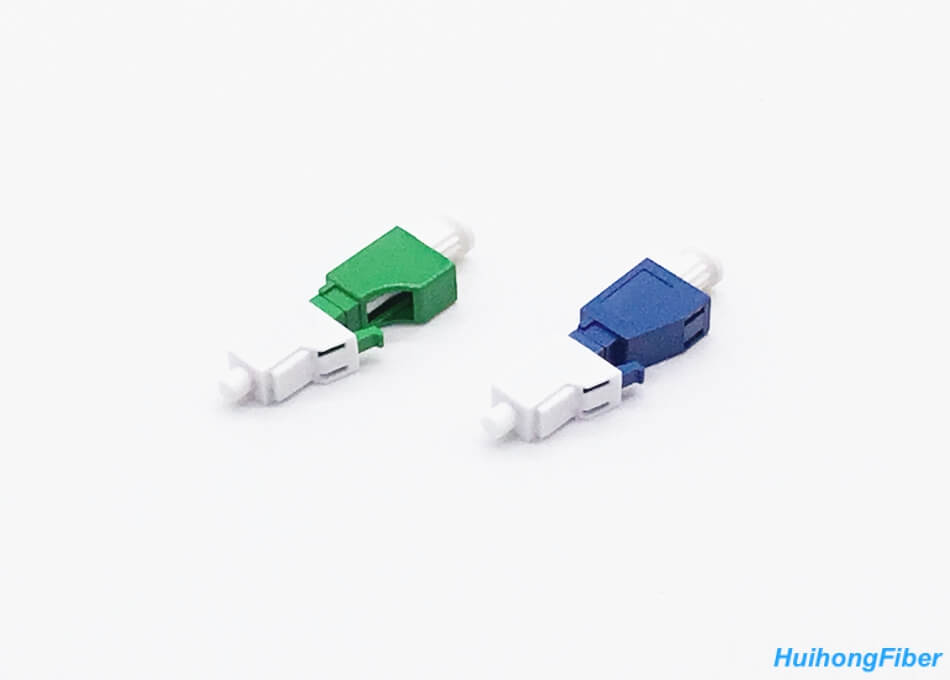

Attenuator is a light passive device, mainly used in optical fiber debugging optical power performance, optical instrument calibration correction and fiber optic signal attenuation to ensure that optical power in the link stable, ideal level, without changing its original transmission wave.


Fiber Connector LC/UPC Ferrule Type Zirconia Ceramic
Connector Gender Fixed Male to Female Transfer Mode Single Mode
Attenuation 1 to 25dB Operating Wavelength(nm) 1260~1620(SM)
Attenuation Accuracy ±0.5dB Return Loss ≥55dB
Polarization Dependent Loss ≤0.2dB Max Optical Input Power 200mW
Humidity 95%RH Operating Temp Range -40~80°C

G.652D is the fiber-optic fiber model in fiber optic cable, representing the non-dispersion displacement single-mode fiber, is currently the most widely used single-mode fiber. Commercially launched in 1983, its scattered wavelength at 1310nm, at 1550nm at the minimum attenuation, but there is a larger positive dispersion, about 8ps (nm/km), the working wavelength can be selected 1310nm, can also choose 1550nm.

This fiber is the most widely used fiber, most of the fiber has been laid, fiber optic cable is most of this kind of fiber. In the late 1970s, attempts were made to replace light-emitting diode light sources with developed long-life semiconductor lasers to obtain longer communication distances and greater communication capacity, but pattern noise occurs when lasers are transmitted in multimode optical fibers. In order to overcome the mode noise, in 1980 successfully developed a single-mode fiber (non-dispersive displacement single-mode fiber), referred to as standard single-mode fiber, which ITU-T recommends as G.652 fiber. Because the design idea of single-mode fiber is to transmit only one mode, there is no mode noise that occurs when transmission occurs in multimode fiber. Therefore, in the mid-1980s, 140Mbit/s optical fiber communication system consisting of laser light source and standard single-mode fiber, in which the relay distance and transmission capacity far exceeded the transmission system of coaxial cable, so that the optical fiber communication system gradually replaced the copper cable communication, becoming the main communication mode adopted in the telecommunications industry.

The G.657 access network with bending attenuation insensitive single-mode fiber optic cable characteristics” is the standard that ITU-T issued in November 2006.

G.657 Fiber is the latest fiber variety developed based on G.652 fiber to achieve the goal of fiber-to-the-home. The main characteristic of this type of fiber is its excellent bending resistance, which achieves a bending radius of 1/4 to 1/2 of the conventional G.652 fiber. G.657 fiber sub-A, B two subcategories, in which G.657A fiber performance and its application environment and G.652D type fiber similar, can be in the 1260 to 1625nm wide wavelength range (i.e. O, E, S, C, L5 working bands) work The G.657B fiber mainly works at 1310nm, 1550nm and 1625nm 3 wavelength windows, which is more suitable for the transmission of FTTH information, installation in the interior or building and other narrow places.

A fiber attenuator is an optical device that reduces the energy of a light signal. Used for the attenuation of input optical power, avoiding distortion caused by the input optical power. As a light-free device, the fiber attenuator is used for debugging optical power performance in optical communication system, calibration correction of optical fiber instrument, and attenuation of optical fiber signal. The product is made of decaying fiber mixed with metal ions, which adjusts the optical power to the desired level.
